How to enter lap times into the advanced motorsports data acquisition software.

The Advantage Motorsports software that is supplied with all of our

data acquisition systems has the power to overlay unlimited number of laps.

(from different laps, drivers, races, sessions etc.)

While you only need 1 method, there are 3 different ways that lap times can be entered.

Your application will determine what method is best for you, our software supports all 3.

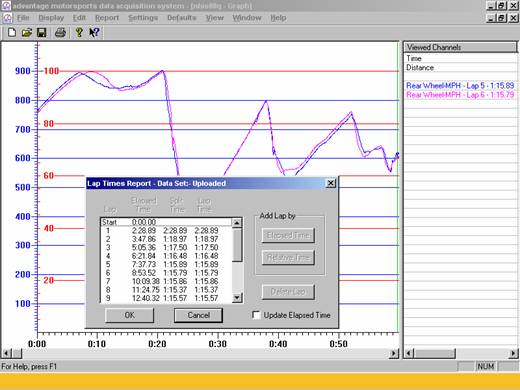

 1.  Method 1: The Stopwatch

This popular method is simply an extension of what most race teams are already doing.  If you already have someone timing the race vehicle, simply have them start the stopwatch when the data logger is started, and write down the lap times of the racing session.  The lap times can be entered directly into your racing data using your PC’s keyboard,  after the data after it is downloaded from the race vehicle.  This is a very accurate and dependable method, and adds no cost to the data acquisition system.

 2.  Method 2: Steering Wheel Switch

 A popular method for those who travel to the track by themselves, the steering wheel switch

allows the driver to press a button (mounted on the dash or steering wheel), and automatically enter lap times into the data acquisition system.  Accuracy of the lap time can vary, dependent upon the consistency of the driver pushing the switch.  Requires optional steering wheel switch. ($29 with coiled cord)

3. Method 3: The Automatic Lap Timing System

 This systems speaks for itself.  A trackside beacon is placed on the pit wall and each time the race vehicle passes the beacon the lap time is automatically sent to the data acquisition system.  Requires optional Automatic Lap Timing System.
